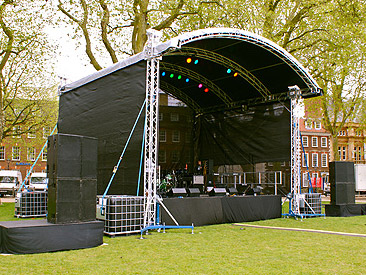

Milos 8m x 6m Stage
Our Milos 8m x 6m is built using self climbing towers, allowing lighting rigs to be put in before the roof is lifted to full height. This stage has a relatively low load bearing capacity, so is better for daytime events, or events with smaller lighting rigs.
Specifications
| Structure Dimension | 8.5m x 6m |
| Stage Dimension | 7.9m x 6m (26'x20') Litedeck 8ft by 4ft panels, multi-leg adapters & screw jacks provided where appropriate |
| Maximum Leg Height | 4.0m |
| Max Load Bearing Capacity | 880kg UDL |
| Walls | Mesh back wall & sides |
| Handrails | Provided for 3 sides of the stage |
| Treads / Steps | 1 set of treads provided |
| Ramp | Truck loading ramp available Disabled access available as an additional option |
| Ballast Required | Up to 6000Kg Ballast included in the price is fixing for soil, where there is unrestricted use of 1200mm long fixings. Alternatively, concrete, water and gravel options are also available, please state surface when requesting a quotation. |
| Estimated Build Time | 4 - 6hrs |
| Crew | 4 crew with 1 company rigger |
| Requires | Level Site Build area of 10m x 10m Vehicle access for 7.5t Truck |
