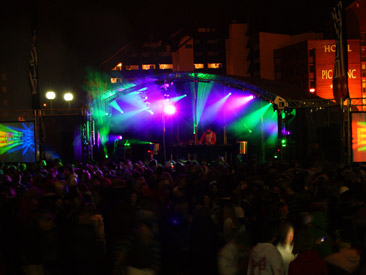

Litec 8m x 6m Stage
Our most popular stage, the 8m x 6m arc combines attractive proportions, with a professional finish. This structure is exceptionally strong, with a maximum load bearing capacity of 1760kg.
This stage can be built with either mesh sides or solid PVC sides.
Specifications
| Structure Dimension | 8.6m x 6m |
| Stage Dimension | 7.9m x 6m (26'x20') Litedeck 8ft by 4ft panels, multi-leg adapters & screw jacks provided where appropriate |
| Maximum Leg Height | 4.0m |
| Max Load Bearing Capacity | 1760kg UDL |
| Walls | Solid blackout back wall & sides |
| Handrails | Provided for 3 sides of the stage |
| Treads / Steps | 1 set of treads provided |
| Ramp | Truck loading ramp available Disabled access available as an additional option |
| Ballast Required | Up to 6000Kg Ballast included in the price is fixing for soil, where there is unrestricted use of 1200mm long fixings. Alternatively, concrete, water and gravel options are also available, please state surface when requesting a quotation. |
| Estimated Build Time | 4 - 6hrs |
| Crew | 4 crew with 1 company rigger |
| Requires | Level Site Build area of 10m x 8m Vehicle access for 7.5t Truck |
