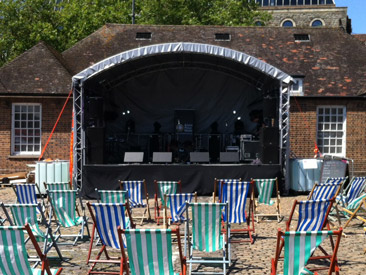

Litec 7m x 4.6m Stage
Our smallest arc stage, the 7m x 4.6m arc gives more performance area than the gable, so it's perfect for larger live acts, or when a larger stage presence is required. With a relatively small footprint, it is ideal for events when space is at a premium.
Specifications
| Structure Dimension | 7.0m x 4.6m |
| Stage Dimension | 6m x 4.8m (20'x16') Litedeck 8ft by 4ft panels, multi-leg adapters & screw jacks provided where appropriate |
| Maximum Leg Height | 4.0m |
| Max Load Bearing Capacity | 1600kg UDL |
| Walls | Solid blackout back wall & mesh sides |
| Handrails | Provided for 3 sides of the stage |
| Treads / Steps | 1 set of treads provided |
| Ramp | Truck loading ramp available Disabled access available as an additional option |
| Ballast Required | Up to 6000Kg Ballast included in the price is fixing for soil, where there is unrestricted use of 1200mm long fixings. Alternatively, concrete, water and gravel options are also available, please state surface when requesting a quotation. |
| Estimated Build Time | 3 - 5hrs |
| Crew | 4 crew with 1 company rigger |
| Requires | Level Site Build area of 8m x 8m Vehicle access for 7.5t Truck |
