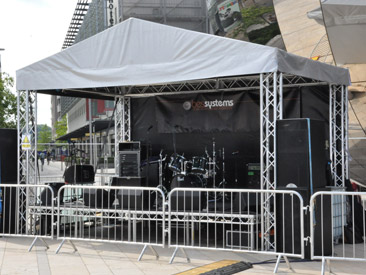

Litec 5.6m x 3.6m Gable Stage
Our 5.6m x 3.6m gable stage is ideal for smaller events, or events with limited budget, who still want a professional looking truss stage.
It has a 16' x 12' performance area, so perfect for smaller bands and DJ set ups, or for Christmas lights switch ons.
It has a heavy duty silver PVC canopy to keep out the elements, and can be built in a relatively short time of 2-3 hours.
Specifications
| Structure Dimension | 5.6m x 3.6m |
| Stage Dimension | 4.8m x 3.6m (16'x12') Litedeck 8ft by 4ft panels, multi-leg adapters & screw jacks provided where appropriate |
| Maximum Leg Height | 3.5m |
| Max Load Bearing Capacity | 750kg UDL |
| Walls | Solid blackout back wall & mesh sides |
| Handrails | Provided for 3 sides of the stage |
| Treads / Steps | 1 set of treads provided |
| Ramp | Truck loading ramp available Disabled access available as an additional option |
| Ballast Required | Up to 4000Kg Ballast included in the price is fixing for soil, where there is unrestricted use of 1200mm long fixings. Alternatively, concrete, water and gravel options are also available, please state surface when requesting a quotation. |
| Estimated Build Time | 2 – 3hrs |
| Crew | 2 crew with 1 company rigger |
| Requires | Level Site Build area of 7m x 5m Vehicle access for 3.5t LWB van |
