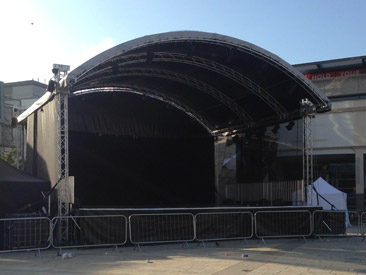

Milos 10m x 8m Stage

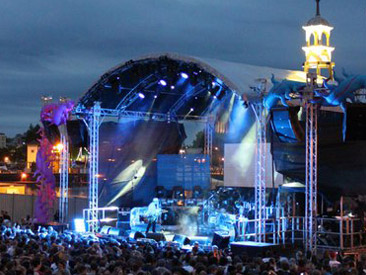

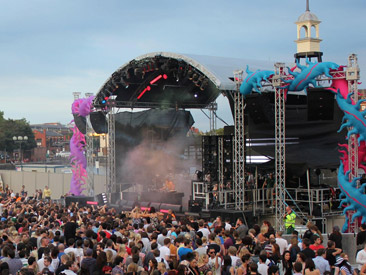

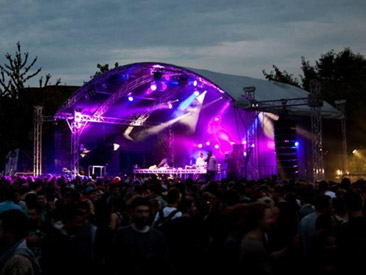

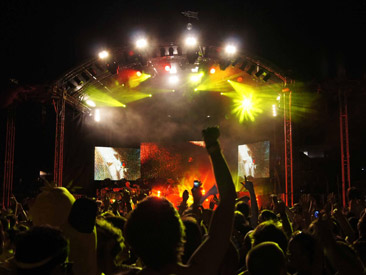

Our largest stage, the Milos 10m x 8m is perfect as a main or 2nd stage, and has been used at a number of festivals including Boomtown, Love Saves The Day and Tokyo World. Stage base can be configured a number of ways, with our Layher base system the most popular.
We can also supply this structure with cow sheds for additional storage / monitor world.
We have a bespoke lighting package designed for this stage, utilising compact lightweight energy efficent fixtures from Chauvet, and offer this at a special discounted rate when booked in conjunction with the structure.
Specifications
| Structure Dimension | 12.8m x 8.5m |
| Stage Dimension | Layher and Litedeck stage base options 9m x 8m Layher base @ 1.2m + height 10m x 6m (32'x20') Litedeck 8ft by 4ft panels, multi-leg adapters & screw jacks provided where appropriate |
| Maximum Leg Height | 6.0m |
| Max Load Bearing Capacity | 1240kg UDL |
| Walls | Mesh back wall & sides |
| Handrails | Provided for 3 sides of the stage |
| Treads / Steps | 2 sets of treads provided |
| Ramp | Truck loading ramp available Disabled access available as an additional option |
| Ballast Required | Up to 6000Kg Ballast included in the price is fixing for soil, where there is unrestricted use of 1200mm long fixings. Alternatively, concrete, water and gravel options are also available, please state surface when requesting a quotation. |
| Estimated Build Time | 6 - 8hrs |
| Crew | 6 crew with 1 company rigger |
| Requires | Level Site Build area of 13m x 10m Vehicle access for 18t Truck |
